TRENDnet 300Mbps Concurrent Dual Band Wireless N Access Point TEW-670AP Specs



The 300Mbps Concurrent Dual Band Wireless N Access Point provides high performance wireless n speed, coverage, and managed controls.

Concurrent Dual Band technology creates two separate wireless n networks at the same time—one on the 2.4GHz frequency and the other on the less congested 5GHz frequency. Assign high bandwidth clients to the uncongested 5GHz frequency and low bandwidth clients to the more common 2.4GHz frequency.

Multiple Input Multiple Output (MIMO) antenna technology reduces wireless dead spots. Wi-Fi Protected Setup (WPS) integrates other WPS supported devices at the touch of a button. Advanced features include 4 SSIDs per wireless band, access filters for each SSID, WMM Quality of Service data prioritization, WPA2-RADIUS encryption, and real-time bandwidth monitoring for each wireless band.

Hardware
Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
  • Wireless: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
LAN1 x 10/100Mbps Auto-MDIX port

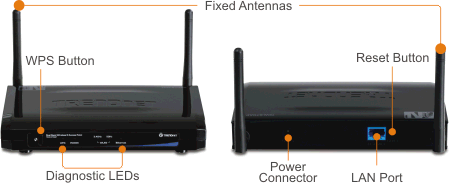

WPS ButtonWi-Fi Protected Setup (WPS) with other WPS compliant devices
WDSEnable/disable Wireless Distribution System support
LED IndicatorPower, 2.4GHz WLAN, 5GHz WLAN, WPS, ETHERNET
Power Adapter12V DC, 1A external power adapter
Power Consumption450mA (max)
Dimension (L x W x H)170 x 111 x 26mm (6.7 x 4.4 x 1in.)
Weight230g (8oz)
Temperature
  • Operation: 0°~ 45°C (32°F~ 113°F)
  • Storage: -10°~ 70°C (14°F~158 °F)
HumidityMax. 85% (non-condensing)
CertificationsCE, FCC
Wireless
Frequency2.412 ~ 2.484GHz
5.150~5.250GHz; 5.725~5.825GHz (FCC)
5.150~5.250MHz (ETSI)
Antenna2 x 3dBi fixed dipole antennas
2 x 4dBi internal antennas
ModulationOFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Data Rate802.11a: up to 54Mbps
802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 300Mbps
Security64/128-bit WEP, WPA-PSK(TKIP)/WPA2-PSK(AES), WPA/WPA2-RADIUS
Multiple SSID and SSID isolation support
Output Power802.11a: 13dBm (typical)
802.11b: 16dBm (typical)
802.11g: 13dBm (typical) 802.11n: 13dBm (typical)
Receiving Sensitivity802.11a: -70dBm (typical)
802.11b: -87dBm (typical)
802.11g: -70dBm (typical)
802.11n: -64dBm (typical)
Channels2.4GHz : 1~11 (FCC), 1~13 (ETSI)
5GHz : following local regulations
