TRENDnet Dual-Band 7/5dBi Indoor Omni Directional Antenna Mounting Base TEW-AI75OB

TEW-AI75OB Omni Antenna provides more power and greater range for your wireless network. As an optional antenna for your IEEE 802.11b/g 2.4GHz or 802.11a 5GHz wireless network equipment, TEW-AI75OB will significantly improve signal strength and quality. TEW-AI75OB will work with any brand of devices with reverse SMA male connector!

* This dBi gain does not factor cable loss. Performance estimations are for typical use; range will vary with site conditions.

Frequency range802.11a: 4.9 ~5.875GHz
802.11b/g: 2.4 ~ 2.5GHz
Gain802.11a: 7dBi
802.11b/g: 5dBi
PolarizationLinear, vertical
HPBW/ Horizontal360°
HPBW/ Vertical802.11a: 25°
802.11b/g: 35°
Power handling2W (cw)
Impedance50 Ohms
ConnectorReverse SMA Female
Cable Length100cm (3.3ft.)
Temperature-10°C ~ 55°C (14°F ~ 131°F)
Humidity-10°C ~ 55°C (14°F ~ 131°F)
WeightAntenna: 40g (1.4oz.)
Base: 82g (2.9oz.)
DimensionAntenna: 217x28x14mm (8.5 x 1.1 x 0.55in.)
Base: 80x58x 28mm (3.15 x 2.28 x1.1in.)

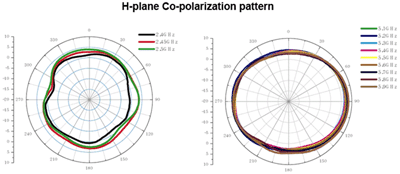

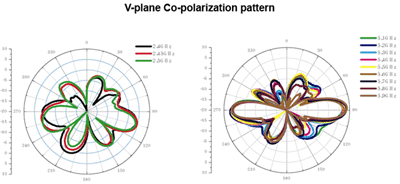

Radiation Patterns
