TRENDnet Dual-Band 8/6dBi Indoor Directional Antenna w/ Mounting Base TEW-AI86DB Specs



TEW-AI86DB Indoor Directional Antenna provides more power and greater range for your wireless network. As an optional antenna for your IEEE 802.11b/g 2.4GHz or 802.11a 5GHz wireless network equipment, TEW-AI86DB will significantly improve signal strength and quality. TEW-AI86DB will work with any brand of device with Reverse SMA Male Connector!


* This dBi gain does not factor cable loss. Performance estimations are for typical use; range will vary with site conditions.

Hardware
Frequency Range802.11a: 4.9 ~ 5.8GHz
802.11b/g: 2.4 ~ 2.5GHz
Gain802.11a: 8dBi
802.11b/g: 6dBi
VSWR2.0:1
PolarizationLinear, Vertical
HPBW/ Horizontal802.11a: 50°
802.11b/g: 75°
HPBW/ Vertical802.11a: 60°
802.11b/g: 70°
Power Handling2W (cw)
Impedance50Ohms
ConnectorReverse SMA Female
cable length100cm (3.3ft.)
DimensionAntenna: 128x85x15 (5.04x3.35x0.59in)
Base: 80x58x28mm(3.15x2.28x1.1in)
WeightAntenna: 51g(1.8oz.)
Base: 82g(2.9oz.)
Temperature-10°C ~ 55°C (14°F ~ 131°F)
Humidity95% at 25°C

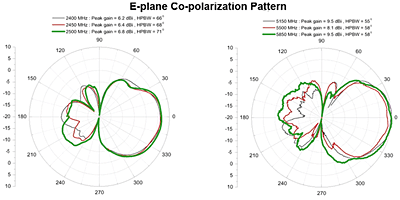

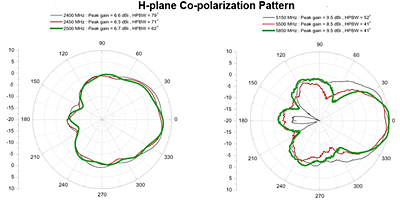

Radiation Patterns
