TRENDnet 150Mbps Wireless N ADSL 2/2+ Modem Router TEW-657BRM Overview, Specs




The 150Mbps Wireless N ADSL 2/2+ Modem Router (model TEW-657BRM) provides both Internet access and a high speed wireless n network.

No need to buy a separate modem and router. Install this device easily and browse the Internet, download files, and talk online with the latest in wireless n technology.

Installation is a breeze with a step-by-step setup wizard. Manage access to the Internet with built-in content filtering. Connect computers, game consoles, media players, and storage devices to the integrated 4-port switch. The latest in wireless encryption and a double firewall protect your valuable data. One-touch Wi-Fi Protected Setup (WPS) connects WPS peripheral devices at the touch of a button.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

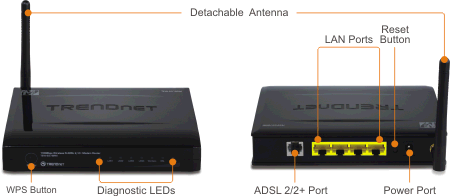

Hardware
StandardsWired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
Wireless: IEEE 802.11b, IEEE 802.11g, Based on IEEE 802.11n technology
ATMVC and LLC Multiplexing
Bridged/Routed Ethernet over ATM (RFC1483/2684)
OAM F4/F5 loop-back
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516)
WAN Port (ADSL line Interface)1x RJ-11 port
Complies with ADSL standards
- ANSI T1.413 Issue2
- G.992.1 (G.dmt, Annex A)
- G.992.2 (G.lite)
Complies with ADSL2 standard
- G.992.3 (G.dmt.bis)
Complies with ADSL2+ standard
- G.992.5 Annex A
LAN4 x 10/100Mbps Auto-MDIX ports
WPS ButtonEnables Wi-Fi Protected Setup (WPS) function
UPnPUPnP IGD 1.0 compliant
FirewallNAT, Access Control, URL Content Filter
LED IndicatorPower, WPS, LAN1~LAN4, WLAN, ADSL and Internet
Power Adapter12V DC, 1A external power adapter
Power Consumption6.03watts (max)
Dimension (L x W x H)150 x 145 x 26mm (5.9 x 5.7 x 1.0in.)
Weight275g (9.7oz)
TemperatureOperation: 0° ~ 40°C (32°F ~ 104°F)
Storage: -20° ~ 60°C (-4°F ~ 140°F) non-condensing
HumidityMax. 90% (non-condensing)
CertificationsCE, FCC
Wireless
Frequency2.415 ~2.484GHz band
ModulationDBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
Antenna1 x 2dBi detachable dipole antenna
Data Rate802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 135Mbps
SecurityWEP(HEX/ASCII): 64/128-bit
WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Output Power802.11b: 18dBm (typical) 802.11g: 15dBm (typical)
802.11n: 13dBm (typical)
Receiving Sensitivity802.11b: -83dBm (typical) @ 11Mbps
802.11g: -66dBm (typical) @ 54Mbps
802.11n: -62dBm (typical) @ *135Mbps
Channels1~ 11 (FCC), 1~13 (ETSI)
