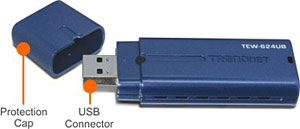

TRENDnet 300Mbps Wireless N USB Adapter TEW-624UB Tech Specs



The 300Mbps Wireless N USB 2.0 Adapter allows you to connect wirelessly with supercharged speed, range and reliability. Wireless speeds increase up to 300Mbps when connecting to TRENDnet Wireless N access points or wireless routers. This 802.11n device seamlessly connects to your wireless network without performance degradation.

Hardware
InterfaceUSB 2.0, 1.1 Standard
StandardsIEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)
Power Consumption
  • Receive Mode: 260mA(max)
  • Transmit Mode: 420mA(max)
Supported OSWindows 7(32/64-bit), Vista (32/64-bit), XP(32/64-bit), 2000, Mac OS X 10.4/10.5
Dimensions (LxWxH)80 x 27 x 12mm (3.1 x 1 x 0.5 inches)
Weight20g (0.7oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity10% ~ 95%max (Non-condensing)
CertificationCE, FCC
Wireless
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-Carrier modulations
  • 801.11n: OFDM, 64-QAM
Antenna2 Built-in Internal Printed Antennas
Frequency2.412 ~ 2.484 GHz
Media Access ProtocolCSMA/CA with AC
Data Rate
(auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • 802.11n (draft): up to 300Mbps
Output Power
  • 802.11b: 17dBm (typical)
  • 802.11g: 14dBm (typical)
  • 802.11n: 13dBm (typical)
Receiving Sensitivity
  • 802.11b: -88dBm (typical) @ 10% PER
  • 802.11g: -74dBm (typical) @ 10% PER
  • 802.11n: -66dBm (typical) @ 8% PER
Encryption64/128-bit WEP (Hex & ASCII), WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP)
Channels1~11 (FCC), 1~13 (ETSI)
