TRENDnet 300Mbps Wireless N PCI Adapter TEW-623PI Overview, Tech Specs

The Wireless N PCI Adapter allows you to connect wirelessly with supercharged speed, range and reliability. This 802.11n device seamlessly connects to your wireless network without performance degradation.

Wireless speeds increase up to 300Mbps* when connecting to TRENDnet Wireless N access points or wireless routers. The latest antenna technology increases wireless data coverage throughout homes and businesses. It also supports universal wireless connectivity with 802.11b or 802.11g networks. Advanced wireless encryption provides secured transmissions. Increased speed and throughput makes it the perfect solution to fulfill your multimedia needs.

Interface32-Bit PCI Rev. 2.1/2.2/2.3
StandardsIEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)
Power Consumption
(receive / transmit)
802.11b : 480mA/480mA
802.11g : 490mA/450mA
802.11n : 550mA/630mA
Supported OSWindows 2000/XP(32/64-bit)/Vista (32/64-bit)
Weight90g (3.2 oz)
TemperatureOperating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity10% ~ 95%max (non-condensing)
CertificationFCC, CE
Module Technique802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g/n: OFDM

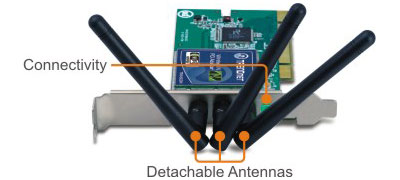

Antenna3 x 2dBi detachable antennas (Reverse SMA connector)
Frequency2.412 ~ 2.484 GHz
Data Rate (auto fallback)802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
802.11n: up to 300Mbps
Output Power802.11b: 17dBm (typical)
802.11g: 13dBm (typical)
802.11n :13dBm (typical)
Receiving Sensitivity802.11b: -85dBm (typical) @ 11mpbs
802.11g: -70dBm (typical) @ 54Mbps
802.11n: -65dBm (typical) @300Mbps
Encryption64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Channels1~11 (FCC), 1~13 (ETSI)
