D-Link Wireless 108G Gaming Router



Trying out GameFuel

D-Link's demo at CES attempted to show the benefit of GameFuel by running a long FTP upload while simultaneously engaging in gameplay. I'm not a gamer, plus I wanted something more quantitative than trying to figure out whether GameFuel was helping me to kill more bad guys.

So I kept the idea of running a simultaneous FTP upload, but instead ran simulated VoIP calls using TestYourVoIP.com's TestMyVoIP Java application. I ran three sets of tests: the VoIP test alone; the VoIP test with FTP but GameFuel disabled; and VoIP test with FTP and GameFuel with Automatic Classification turned on. Table 1 summarizes the results

 VoIP onlyVoIP + FTP
(w/o GameFuel)
VoIP + FTP
(w/ GameFuel Auto Classification)
Round-Trip Latency122mS406 ms260 ms
Packet Discards0.1%1.5%0.4%
Packet Loss0.1%0.0%0.1%
Loss PeriodsMin: 20 ms
Avg: 20 ms
Max: 20 ms
Random Loss
Min: 100 ms
Avg: 100 ms
Max: 120 ms
Burst Loss
Min: 20 ms
Avg: 20 ms
Max: 40 ms
Random Loss
JitterMin: 0 ms
Avg: 6 ms
Max: 26 ms
Min: 0 ms
Avg: 23 ms
Max: 170 ms
Min: 1 ms
Avg: 15 ms
Max: 50 ms
Table 1: GameFuel Test Results

The biggest differences are in Round-Trip Latency, Packet Discards and Jitter, which I've highlighted in yellow. The results show that GameFuel doesn't completely eliminate the effects from FTP's simultaneous use, but in this test most significantly reduced discarded packets and jitter - both of which can ruin a VoIP call.

GameFuel Auto Classification in action

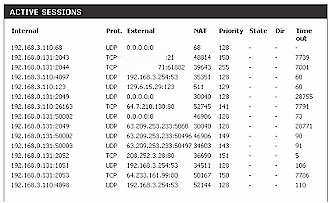

Figure 12: GameFuel Auto Classification in action
(click image to enlarge)

By the way, I found that the 4300's Active Sessions status page is a great tool to see what's passing through your router. It also provides an insight into the way that GameFuel is prioritizing your traffic. You just need to get used to looking at the port numbers in the External column and be prepared to do some IP address lookups to see the whole story. Figure 12 is a snapshot of the Active Sessions page taken while a simultaneous FTP plus TestYourVoIP test was running with GameFuel / Auto Classification engaged.

The second line down shows that the FTP session (Port 21) is assigned a priority of 150 (the range is 1 to 255), while the VoIP UDP sessions (ports 5060, 50496 and 50497) were assigned priorities of 128, 149 and 143. You can see most other sessions have priorities assigned in a surprisingly small range, except for one at the lowest value of 255.
