Linksys WRT54GS Wireless-G Broadband Router with SpeedBooster Reviewed

Internal details

The GS uses a very different board design than its predecessor (Figure 1).

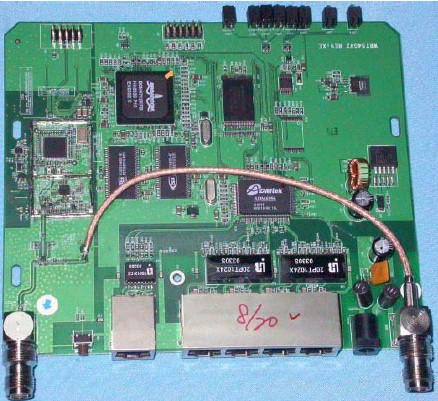

Linksys WRT54GS - Main board

Figure 1: The WRT54GS board

The radio is now integrated onto the main board instead of using a separate mini-PCI radio. Linksys also tells me that it uses a different Broadcom chipset, that's needed to support the "Afterburner" capability. This means that WRT54G's can't be upgraded to be equivalent to the "GS". So if you want to play, you'll have to pay.

The radio is cabled to two RP-TNC style connectors (that Linksys uses throughout its 802.11b product line) which have two moveable, jointed dipole antennas attached.

Something that hasn't changed is that the GS is still based on Broadcom's BCM4702 Wireless Network Processor, supported by RAM, Flash memory, and an ADMtek 6996 for the 10/100 WAN Ethernet port and four 10/100 switched LAN ports.

Updated 19 April 2004 A closer look at the GS's design reveals that it's based on Broadcom's BCM4712"system-on-a-chip" instead of the 4702 and the ADMtek 6996 switch replaces a Broadcom BCM5325.
