I put the AG through our suite of router tests, and the results are shown in Table 1.
|Test Description||Throughput - (Mbps)|
|WAN - LAN||201|
|LAN - WAN||187|
Table 1: Routing throughput

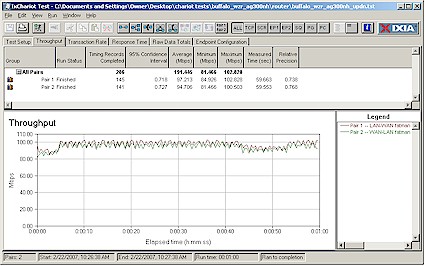

This puts it in second place in our Router Performance Charts, right behind the D-Link DIR-655. Figure 9 shows what the throughput variation looks like on the simultaneous routing test.
Figure 9: Simultaneous throughput test results
But those of you hoping to put the AG into service for BitTorrent or other P2P filesharing will be a bit disappointed with its ability to support simultaneous connections. I was able to reliably achieve only 64 simultaneous (32 up, 32 down) connections. This is much better than the Belkin N1's unusually low 10, but less than the D-Link DIR-655's 120.
